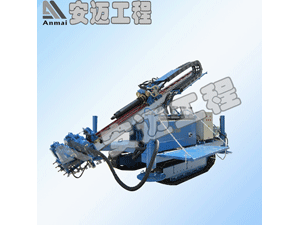

Oruga con Máquina de Perforación de Anclaje MDL-120D1

Descripción
This drill rig belongs to full hydraulic gyrator type. Its drilling depth is 100-140m. The crawler anchor drilling rig can be used for anchoring, which is applicable to rod boring, casing drilling and complex rod & casing drilling. It can be used for jet grouting, which is applicable to single jet grouting, double jet grouting and triple jet grouting. The drill rig can be also used for foundation pit de-watering and mini-type filling pile.

Aplicaciones
The crawler anchor drilling rig is mainly applied to urban subway, high-rise buildings, airport, ground source heat pump and other deep foundation pit for anchoring, jet grouting and dewatering. This drill rig can be used for drilling geothermal hole and well, and can be used for exploring.

Ventajas
This crawler anchor drilling rig is stable, efficient, versatile, and able to drill complex strata and deal with accidents.
1. According to the actual requirements, the torque and rotate speed can be adjusted to achieve best efficiency.
2. The route of shaft bracket is 3.4 meters, so the drill rig can have complex rod & casing drill for 3 meters.
3. According to different strata, the gyrator can be adjusted to the corresponding torque to improve the drilling rig's adjustment.
4. The gyrator of crawler anchor drilling rig adopts double hydraulic motor drive. With large output torque, the rotary center was lower than those of similar products, greatly improving the stability of drilling rig.
5. Equipped with crawler chassis, high rotating platform, large diameter of the oil cylinder, 0.9 meters of the carriage and orifice support device, it is easy for drill rig to shift and locate. It is stable and reliable when drilling.
6. Due to shaft bracket automatically handling drill rod, this crawler anchor drilling rig can reduce the intensity of the workers' labor. It is very efficient.

Características
1. Equipped with corresponding drilling rig, the drill rig can satisfy many kinds of construction requirements.
2. The drilling rig can be used for mud slag discharging with three-wing drilling bit. It is applicable to drill in soil strata, sand strata, etc.
3. It is used for air discharging with air DTH hammer drilling. Due to high cost of the configuration and great pollution, the crawler anchor drilling rig is just applied to the rock and broken layer construction.
4. The drill rig can be used for mud slag discharging with hydraulic hammer drilling. Due to low cost of configuration and small pollution, the rig equipped with BW-320 pump and hydraulic hammer is suitable for high moisture content construction, such as crushing egg layer, sand layer, etc.
5. It is of casing drilling and complex rod & casing drilling.
6. The crawler anchor drilling rig can do single, double and triple jet grouting. It also can do fixed jet grouting and rotary jet grouting.

Componentes
The drill rig is composed of crawler chassis, gyrator, shaft brackets, clamp holder, operating floor, pump station, sliding block and vice-concentration tower.

Parámetros of Oruga de Perforación con Máquina de Anclaje
